Broker has a built-in event bus to support Event-driven architecture and to send events to local and remote services.

Balanced events

The event listeners are arranged to logical groups. It means that only one listener is triggered in every group.

Example: you have 2 main services: users & payments. Both subscribe to the user.created event. You start 3 instances of users service and 2 instances of payments service. When you emit the user.created event, only one users and one payments service instance will receive the event.

The group name comes from the service name, but it can be overwritten in event definition in services.

Example

module.exports = {
    name: "payment",
    events: {
        "order.created": {
            // Register handler to the "other" group instead of "payment" group.
            group: "other",
            handler(ctx) {
                console.log("Payload:", ctx.params);
                console.log("Sender:", ctx.nodeID);
                console.log("Metadata:", ctx.meta);
                console.log("The called event name:", ctx.eventName);
            }
        }
    }
}

Emit balanced events

Send balanced events with broker.emit function. The first parameter is the name of the event, the second parameter is the payload.
To send multiple values, wrap them into an Object.

// The `user` will be serialized to transportation.
broker.emit("user.created", user);

Specify which groups/services shall receive the event:

// Only the `mail` & `payments` services receives it
broker.emit("user.created", user, ["mail", "payments"]);

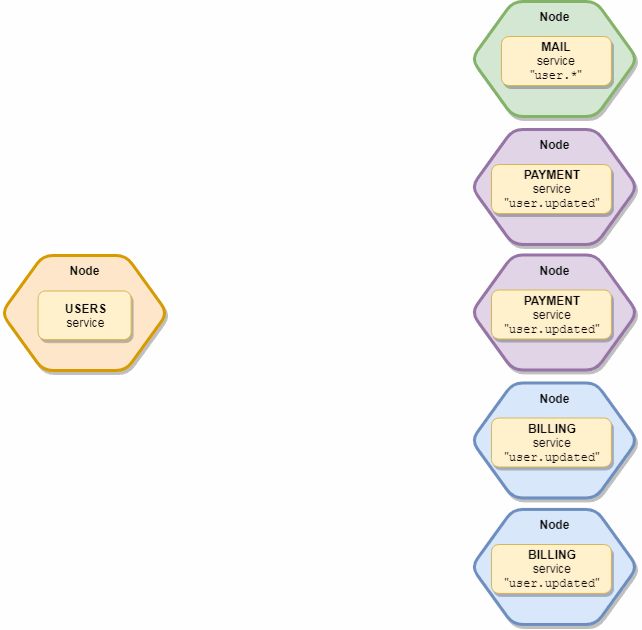

Broadcast event

The broadcast event is sent to all available local & remote services. It is not balanced, all service instances will receive it.

Send broadcast events with broker.broadcast method.

broker.broadcast("config.changed", config);

Specify which groups/services shall receive the event:

// Send to all "mail" service instances
broker.broadcast("user.created", { user }, "mail");

// Send to all "user" & "purchase" service instances.
broker.broadcast("user.created", { user }, ["user", "purchase"]);

Local broadcast event

Send broadcast events only to all local services with broker.broadcastLocal method.

broker.broadcastLocal("config.changed", config);

The v0.14 version supports Context-based event handlers. Event context is useful if you are using event-driven architecture and want to trace your events. If you are familiar with Action Context you will feel at home. The Event Context is very similar to Action Context, except for a few new event related properties. Check the complete list of properties

Legacy event handlers
You don’t have to rewrite all existing event handlers as Moleculer still supports legacy signature "user.created"(payload) { ... }. It is capable to detect different signatures of event handlers:

If it finds that the signature is "user.created"(ctx) { ... }, it will call it with Event Context.

If not, it will call with old arguments & the 4th argument will be the Event Context, like "user.created"(payload, sender, eventName, ctx) {...}

Context-based event handler & emit a nested event

module.exports = {
    name: "accounts",
    events: {
        "user.created"(ctx) {
            console.log("Payload:", ctx.params);
            console.log("Sender:", ctx.nodeID);
            console.log("Metadata:", ctx.meta);
            console.log("The called event name:", ctx.eventName);

            ctx.emit("accounts.created", { user: ctx.params.user });
        }
    }
};

Subscribe to events in ‘events’ property of services. Use of wildcards (?, *, **) is available in event names.

module.exports = {
    events: {
        // Subscribe to `user.created` event
        "user.created"(ctx) {
            console.log("User created:", ctx.params);
        },

        // Subscribe to all `user` events
        "user.*"(ctx) {
            console.log("User event:", ctx.params);
        }

        // Legacy event handler signature with context
        "$**"(payload, sender, event, ctx) {
            console.log(`Event '${event}' received from ${sender} node:`, payload);
        }
    }
}

Context

When you emit an event, the broker creates a Context instance which contains all request information and passes it to the event handler as a single argument.

Available properties & methods of Context:

Name	Type	Description
`ctx.id`	`String`	Context ID
`ctx.broker`	`ServiceBroker`	Instance of the broker.
`ctx.event`	`Object`	Instance of event definition.
`ctx.nodeID`	`String`	The caller or target Node ID.
`ctx.caller`	`String`	Action name of the caller. E.g.: `v3.myService.myAction`
`ctx.eventName`	`String`	Name of the event.
`ctx.eventType`	`String`	Type of the event (e.g. `emit` or `broadcast`).
`ctx.eventGroups`	`Array<String>`	Group of the events that should receive the event.
`ctx.params`	`Any`	Request params. Second argument from `broker.call`.
`ctx.meta`	`Any`	Request metadata. It will be also transferred to nested-calls.
`ctx.locals`	`Any`	Local data. It will be also transferred to nested-calls.
`ctx.level`	`Number`	Request level (in nested-calls). The first level is `1`.
`ctx.call()`	`Function`	Make nested-calls. Same arguments like in `broker.call`
`ctx.emit()`	`Function`	Emit an event, same as `broker.emit`
`ctx.broadcast()`	`Function`	Broadcast an event, same as `broker.broadcast`

Context tracking

If you want graceful service shutdowns, enable the Context tracking feature in broker options. If you enable it, all services will wait for all running contexts before shutdown.
A timeout value can be defined with shutdownTimeout broker option. The default values is 5 seconds.

**Enable context tracking & change the timeout value.

const broker = new ServiceBroker({
    nodeID: "node-1",
    tracking: {
        enabled: true,
        shutdownTimeout: 10 * 1000
    }
});

The shutdown timeout can be overwritten by $shutdownTimeout property in service settings.

Disable tracking in calling option

broker.emit("posts.find", {}, { tracking: false });

Internal events

The broker broadcasts some internal events. These events always starts with $ prefix.

`$services.changed`

The broker sends this event if the local node or a remote node loads or destroys services.

Payload

Name	Type	Description
`localService`	`Boolean`	True if a local service changed.

`$circuit-breaker.opened`

The broker sends this event when the circuit breaker module change its state to open.

Payload

Name	Type	Description
`nodeID`	`String`	Node ID
`action`	`String`	Action name
`failures`	`Number`	Count of failures

`$circuit-breaker.half-opened`

The broker sends this event when the circuit breaker module change its state to half-open.

Payload

Name	Type	Description
`nodeID`	`String`	Node ID
`action`	`String`	Action name

`$circuit-breaker.closed`

The broker sends this event when the circuit breaker module change its state to closed.

Payload

Name	Type	Description
`nodeID`	`String`	Node ID
`action`	`String`	Action name

`$node.connected`

The broker sends this event when a node connected or reconnected.

Payload

Name	Type	Description
`node`	`Node`	Node info object
`reconnected`	`Boolean`	Is reconnected?

`$node.updated`

The broker sends this event when it has received an INFO message from a node, (i.e. a service is loaded or destroyed).

Payload

Name	Type	Description
`node`	`Node`	Node info object

`$node.disconnected`

The broker sends this event when a node disconnected (gracefully or unexpectedly).

Payload

Name	Type	Description
`node`	`Node`	Node info object
`unexpected`	`Boolean`	`true` - Not received heartbeat, `false` - Received `DISCONNECT` message from node.

`$broker.started`

The broker sends this event once broker.start() is called and all local services are started.

`$broker.stopped`

The broker sends this event once broker.stop() is called and all local services are stopped.

`$transporter.connected`

The transporter sends this event once the transporter is connected.

`$transporter.disconnected`

The transporter sends this event once the transporter is disconnected.
