The actions are the callable/public methods of the service. The action calling represents a remote-procedure-call (RPC). It has request parameters & returns response, like a HTTP request.

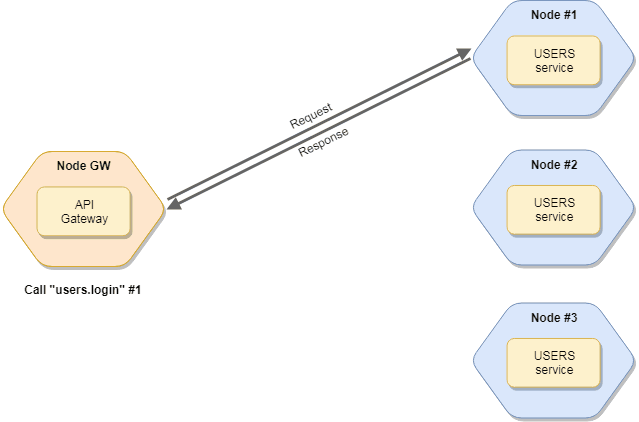

If you have multiple instances of services, the broker will load balancing the request among instances. Read more about balancing.

Call services

To call a service, use the broker.call method. The broker looks for the service (and a node) which has the given action and call it. The function returns a Promise.

Syntax

const res = await broker.call(actionName, params, opts);

The actionName is a dot-separated string. The first part of it is the service name, while the second part of it represents the action name. So if you have a posts service with a create action, you can call it as posts.create.

The params is an object which is passed to the action as a part of the Context. The service can access it via ctx.params. It is optional.

The opts is an object to set/override some request parameters, e.g.: timeout, retryCount. It is optional.

Available calling options:

Name	Type	Default	Description
`timeout`	`Number`	`null`	Timeout of request in milliseconds. If the request is timed out and you don’t define `fallbackResponse`, broker will throw a `RequestTimeout` error. To disable set `0`. If it’s not defined, broker uses the `requestTimeout` value of broker options. Read more
`retries`	`Number`	`null`	Count of retry of request. If the request is timed out, broker will try to call again. To disable set `0`. If it’s not defined, broker uses the `retryPolicy.retries` value of broker options. Read more
`fallbackResponse`	`Any`	`null`	Returns it, if the request has failed. Read more
`nodeID`	`String`	`null`	Target nodeID. If set, it will make a direct call to the given node.
`meta`	`Object`	`null`	Metadata of request. Access it via `ctx.meta` in actions handlers. It will be transferred & merged at nested calls, as well.
`parentCtx`	`Context`	`null`	Parent `Context` instance.
`requestID`	`String`	`null`	Request ID or correlation ID. It appears in the metrics events.

Usages

Call without params

broker.call("user.list")
    .then(res => console.log("User list: ", res));

Call with params

broker.call("user.get", { id: 3 })
    .then(res => console.log("User: ", res));

Call with async/await

const res = await broker.call("user.get", { id: 3 });
console.log("User: ", res);

Call with options

broker.call("user.recommendation", { limit: 5 }, {
    timeout: 500,
    retries: 3,
    fallbackResponse: defaultRecommendation
}).then(res => console.log("Result: ", res));

Call with error handling

broker.call("posts.update", { id: 2, title: "Modified post title" })
    .then(res => console.log("Post updated!"))
    .catch(err => console.error("Unable to update Post!", err));

Direct call: get health info from the “node-21” node

broker.call("$node.health", {}, { nodeID: "node-21" })
    .then(res => console.log("Result: ", res));

Metadata

Send meta information to services with meta property. Access it via ctx.meta in action handlers. Please note at nested calls the meta is merged.

broker.createService({
    name: "test",
    actions: {
        first(ctx) {
            return ctx.call("test.second", null, { meta: {
                b: 5
            }});
        },
        second(ctx) {
            console.log(ctx.meta);
            // Prints: { a: "John", b: 5 }
        }
    }
});

broker.call("test.first", null, { meta: {
    a: "John"
}});

The meta is sent back to the caller service. Use it to send extra meta information back to the caller. E.g.: send response headers back to API gateway or set resolved logged in user to metadata.

broker.createService({
    name: "test",
    actions: {
        async first(ctx) {
            await ctx.call("test.second", null, { meta: {
                a: "John"
            }});

            console.log(ctx.meta);
            // Prints: { a: "John", b: 5 }
        },
        second(ctx) {
            // Modify meta
            ctx.meta.b = 5;
        }
    }
});

When making internal calls to actions (this.actions.xy()) you should set parentCtx to pass meta data.

Internal calls

broker.createService({
  name: "mod",
  actions: {
    hello(ctx) {
      console.log(ctx.meta);
      // Prints: { user: 'John' }
      ctx.meta.age = 123
      return this.actions.subHello(ctx.params, { parentCtx: ctx });
    },

    subHello(ctx) {
      console.log("meta from subHello:", ctx.meta);
      // Prints: { user: 'John', age: 123 }
      return "hi!";
    }
  }
});

broker.call("mod.hello", { param: 1 }, { meta: { user: "John" } });

Timeout

Timeout can be set in action definition, as well. It overwrites the global broker requestTimeout option, but not the timeout in calling options.

Example

// moleculer.config.js
module.exports = {
    nodeID: "node-1",
    requestTimeout: 3000
};
 // greeter.service.js
module.exports = {
    name: "greeter",
    actions: {
        normal: {
            handler(ctx) {
                return "Normal";
            }
        },
         slow: {
            timeout: 5000, // 5 secs
            handler(ctx) {
                return "Slow";
            }
        }
    },

Calling examples

// It uses the global 3000 timeout
await broker.call("greeter.normal");
 // It uses the 5000 timeout from action definition
await broker.call("greeter.slow");
 // It uses 1000 timeout from calling option
await broker.call("greeter.slow", null, { timeout: 1000 });

Streaming

Moleculer supports Node.js streams as request params and as response. Use it to transfer uploaded file from a gateway or encode/decode or compress/decompress streams.

Examples

Send a file to a service as a stream

const stream = fs.createReadStream(fileName);

broker.call("storage.save", stream, { meta: { filename: "avatar-123.jpg" }});

Please note, the params should be a stream, you cannot add any more variables to the params. Use the meta property to transfer additional data.

Receiving a stream in a service

module.exports = {
    name: "storage",
    actions: {
        save(ctx) {
            const s = fs.createWriteStream(`/tmp/${ctx.meta.filename}`);
            ctx.params.pipe(s);
        }
    }
};

Return a stream as response in a service

module.exports = {
    name: "storage",
    actions: {
        get: {
            params: {
                filename: "string"
            },
            handler(ctx) {
                return fs.createReadStream(`/tmp/${ctx.params.filename}`);
            }
        }
    }
};

Process received stream on the caller side

const filename = "avatar-123.jpg";
broker.call("storage.get", { filename })
    .then(stream => {
        const s = fs.createWriteStream(`./${filename}`);
        stream.pipe(s);
        s.on("close", () => broker.logger.info("File has been received"));
    })

AES encode/decode example service

const crypto = require("crypto");
const password = "moleculer";

module.exports = {
    name: "aes",
    actions: {
        encrypt(ctx) {
            const encrypt = crypto.createCipher("aes-256-ctr", password);
            return ctx.params.pipe(encrypt);
        },

        decrypt(ctx) {
            const decrypt = crypto.createDecipher("aes-256-ctr", password);
            return ctx.params.pipe(decrypt);
        }
    }
};

Action visibility

The action has a visibility property to control the visibility & callability of service actions.

Available values:

published or null: public action. It can be called locally, remotely and can be published via API Gateway
public: public action, can be called locally & remotely but not published via API GW
protected: can be called only locally (from local services)
private: can be called only internally (via this.actions.xy() inside service)

Change visibility

module.exports = {
    name: "posts",
    actions: {
        // It's published by default
        find(ctx) {},
        clean: {
            // Callable only via `this.actions.clean`
            visibility: "private",
            handler(ctx) {}
        }
    },
    methods: {
        cleanEntities() {
            // Call the action directly
            return this.actions.clean();
        }
    }
}

The default values is null (means published) due to backward compatibility.

Action hooks

Action hooks are pluggable and reusable middleware functions that can be registered before, after or on errors of service actions. A hook is either a Function or a String. In case of a String it must be equal to service’s method name.

Service level declaration

Hooks can be assigned to a specific action (by indicating action name) or all actions (*) in service.

Please notice that hook registration order matter as it defines sequence by which hooks are executed. For more information take a look at hook execution order.

Before hooks

const DbService = require("moleculer-db");

module.exports = {
    name: "posts",
    mixins: [DbService]
    hooks: {
        before: {
            // Define a global hook for all actions
            // The hook will call the `resolveLoggedUser` method.
            "*": "resolveLoggedUser",

            // Define multiple hooks for action `remove`
            remove: [
                function isAuthenticated(ctx) {
                    if (!ctx.user)
                        throw new Error("Forbidden");
                },
                function isOwner(ctx) {
                    if (!this.checkOwner(ctx.params.id, ctx.user.id))
                        throw new Error("Only owner can remove it.");
                }
            ]
        }
    },

    methods: {
        async resolveLoggedUser(ctx) {
            if (ctx.meta.user)
                ctx.user = await ctx.call("users.get", { id: ctx.meta.user.id });
        }
    }
}

After & Error hooks

const DbService = require("moleculer-db");

module.exports = {
    name: "users",
    mixins: [DbService]
    hooks: {
        after: {
            // Define a global hook for all actions to remove sensitive data
            "*": function(ctx, res) {
                // Remove password
                delete res.password;

                // Please note, must return result (either the original or a new)
                return res;
            },
            get: [
                // Add a new virtual field to the entity
                async function (ctx, res) {
                    res.friends = await ctx.call("friends.count", { query: { follower: res._id }});

                    return res;
                },
                // Populate the `referrer` field
                async function (ctx, res) {
                    if (res.referrer)
                        res.referrer = await ctx.call("users.get", { id: res._id });

                    return res;
                }
            ]
        },
        error: {
            // Global error handler
            "*": function(ctx, err) {
                this.logger.error(`Error occurred when '${ctx.action.name}' action was called`, err);

                // Throw further the error
                throw err;
            }
        }
    }
};

Action level declaration

Hooks can be also registered inside action declaration.

Please note that hook registration order matter as it defines sequence by which hooks are executed. For more information take a look at hook execution order.

Before & After hooks

broker.createService({
    name: "greeter",
    actions: {
        hello: {
            hooks: {
                before(ctx) {
                    broker.logger.info("Before action hook");
                },
                after(ctx, res) {
                    broker.logger.info("After action hook"));
                    return res;
                }
            },

            handler(ctx) {
                broker.logger.info("Action handler");
                return `Hello ${ctx.params.name}`;
            }
        }
    }
});

Execution order

It is important to keep in mind that hooks have a specific execution order. This is especially important to remember when multiple hooks are registered at different (service and/or action) levels. Overall, the hooks have the following execution logic:

before hooks: global (*) -> service level -> action level.
after hooks: action level -> service level -> global (*).

Example of a global, service & action level hook execution chain

broker.createService({
    name: "greeter",
    hooks: {
        before: {
            "*"(ctx) {
                broker.logger.info(chalk.cyan("Before all hook"));
            },
            hello(ctx) {
                broker.logger.info(chalk.magenta("  Before hook"));
            }
        },
        after: {
            "*"(ctx, res) {
                broker.logger.info(chalk.cyan("After all hook"));
                return res;
            },
            hello(ctx, res) {
                broker.logger.info(chalk.magenta("  After hook"));
                return res;
            }
        },
    },

    actions: {
        hello: {
            hooks: {
                before(ctx) {
                    broker.logger.info(chalk.yellow.bold("    Before action hook"));
                },
                after(ctx, res) {
                    broker.logger.info(chalk.yellow.bold("    After action hook"));
                    return res;
                }
            },

            handler(ctx) {
                broker.logger.info(chalk.green.bold("      Action handler"));
                return `Hello ${ctx.params.name}`;
            }
        }
    }
});

Output produced by global, service & action level hooks

INFO  - Before all hook
INFO  -   Before hook
INFO  -     Before action hook
INFO  -       Action handler
INFO  -     After action hook
INFO  -   After hook
INFO  - After all hook

Reusability

The most efficient way of reusing hooks is by declaring them as service methods in a separate file and, later, import them with the mixin mechanism. This way a single hook can be easily shared across multiple actions.

Mixin

module.exports = {
    methods: {
        checkIsAuthenticated(ctx) {
            if (!ctx.meta.user)
                throw new Error("Unauthenticated");
        },
        checkUserRole(ctx) {
            if (ctx.action.role && ctx.meta.user.role != ctx.action.role)
                throw new Error("Forbidden");
        },
        checkOwner(ctx) {
            // Check the owner of entity
        }
    }
}

Use mixin methods in hooks

const MyAuthMixin = require("./my.mixin");

module.exports = {
    name: "posts",
    mixins: [MyAuthMixin]
    hooks: {
        before: {
            "*": ["checkIsAuthenticated"],
            create: ["checkUserRole"],
            update: ["checkUserRole", "checkOwner"],
            remove: ["checkUserRole", "checkOwner"]
        }
    },

    actions: {
        find: {
            // No required role
            handler(ctx) {}
        },
        create: {
            role: "admin",
            handler(ctx) {}
        },
        update: {
            role: "user",
            handler(ctx) {}
        }
    }
};

Local Storage

The locals property of Context object is a simple storage that can be used to store some additional data and pass it to the action handler. locals property and hooks are a powerful combo:

Setting ctx.locals in before hook

module.exports = {
    name: "user",

    hooks: {
        before: {
            async get(ctx) {
                const entity = await this.findEntity(ctx.params.id);
                ctx.locals.entity = entity;
            }
        }
    },

    actions: {
        get: {
            params: {
                id: "number"
            },
            handler(ctx) {
                this.logger.info("Entity", ctx.locals.entity);
            }
        }
    }
}

Context

When you call an action, the broker creates a Context instance which contains all request information and passes it to the action handler as a single argument.

Available properties & methods of Context:

Name	Type	Description
`ctx.id`	`String`	Context ID
`ctx.broker`	`ServiceBroker`	Instance of the broker.
`ctx.action`	`Object`	Instance of action definition.
`ctx.nodeID`	`String`	The caller or target Node ID.
`ctx.caller`	`String`	Action name of the caller. E.g.: `v3.myService.myAction`
`ctx.requestID`	`String`	Request ID. If you make nested-calls, it will be the same ID.
`ctx.parentID`	`String`	Parent context ID (in nested-calls).
`ctx.params`	`Any`	Request params. Second argument from `broker.call`.
`ctx.meta`	`Any`	Request metadata. It will be also transferred to nested-calls.
`ctx.locals`	`Any`	Local data. It will be also transferred to nested-calls.
`ctx.level`	`Number`	Request level (in nested-calls). The first level is `1`.
`ctx.call()`	`Function`	Make nested-calls. Same arguments like in `broker.call`
`ctx.emit()`	`Function`	Emit an event, same as `broker.emit`
`ctx.broadcast()`	`Function`	Broadcast an event, same as `broker.broadcast`

Context tracking

If you want graceful service shutdowns, enable the Context tracking feature in broker options. If you enable it, all services will wait for all running contexts before shutdown.
A timeout value can be defined with shutdownTimeout broker option. The default values is 5 seconds.

**Enable context tracking & change the timeout value.

const broker = new ServiceBroker({
    nodeID: "node-1",
    tracking: {
        enabled: true,
        shutdownTimeout: 10 * 1000
    }
});

The shutdown timeout can be overwritten by $shutdownTimeout property in service settings.

Disable tracking in calling option

broker.call("posts.find", {}, { tracking: false });
